Tap 107 UNF FR

Taraud 107 UNF FR
Taraud 107 UNF FR

Ref famille : 107 UNF FR

Brand : JANIN

Taraud machine pour filets rapportés
Goujures hélice, attachement ISO

More

  • MA_HSS
  • RE_sans
  • SE_DROITE
  • SF_UNF_FR
  • EN_C
  • TY_TB3D

10 variants

Net unit price :

Available

Order

Any question ?

We are at your service

More informations on products

Système
UNF FR

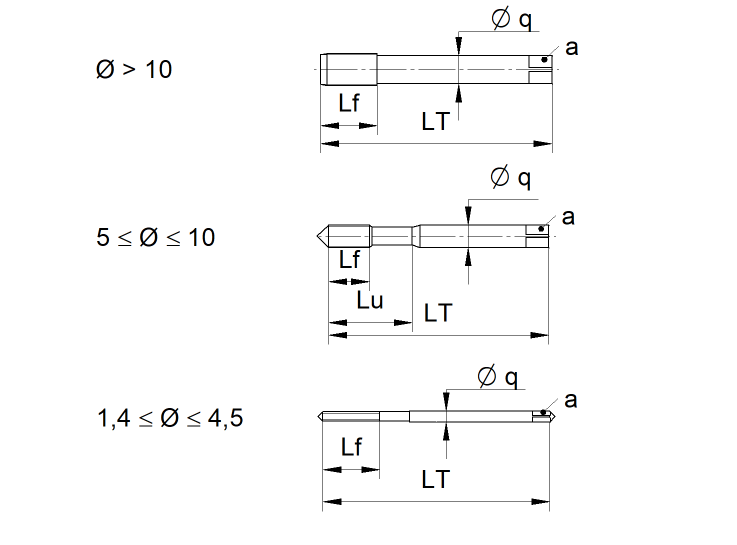

Image_silhouette
1-Toutes silhouettes
Longueur d'entrée
2,5 x P (forme C)
Matière
HSS
Revêtement
sans
Silhouette
NF E66-103 FR
Type de goujures
Hélice 40°
Type de trous
Trous borgnes jusqu'à 3xD
Machining steels 15-20 m/min Recommended
Structural and cementation steels 15-20 m/min Recommended
Alloy steels Rm<850 N/mm² 15-20 m/min Recommended
Electrolitic copper 10-15 m/min Recommended
Long chips brass 15-20 m/min Recommended
Aluminium alloys with 1,5 10-15 m/min Recommended
Thermoplastics 10-12 m/min Recommended
107-FR N6 x 40 NF
Ref : 01039257
Dimension N°6x40f

Available

46,37 €

107-FR N10 x 32 NF
Ref : 01039258
Dimension N°10x32f

Available

46,37 €

107-FR 1/2 X 20 NF
Ref : 01039263
Dimension 1/2"x20f

Available

107-FR 1/4 X 28 NF
Ref : 01039259
Dimension 1/4"x28f

Available

46,37 €

107-FR 3/4 X 16 NF
Ref : 01039266
Dimension 3/4"x16f

Available

107-FR 3/8 X 24 NF
Ref : 01039261
Dimension 3/8"x24f

Available

62,89 €

107-FR 5/8 X 18 NF
Ref : 01039265
Dimension 5/8"x18f

Available

107-FR 5/16 X 24 NF
Ref : 01039260
Dimension 5/16"x24f

Available

51,14 €

107-FR 7/16 X 20 NF
Ref : 01039262
Dimension 7/16"x20f

Available

107-FR 9/16 X 18 NF
Ref : 01039264
Dimension 9/16"x18f

On ask
